SC-U — THE 3-WAY BRIDGE BETWEEN STAGECONNECT, USB & ULTRANET

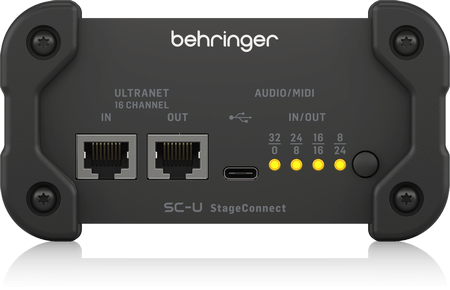

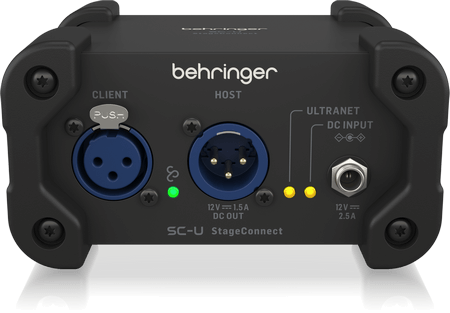

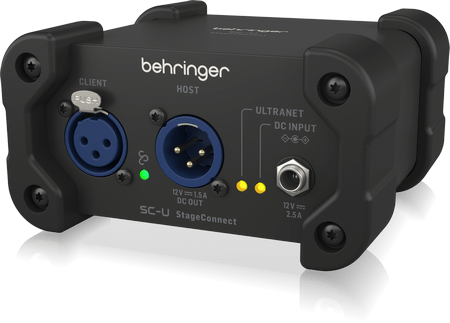

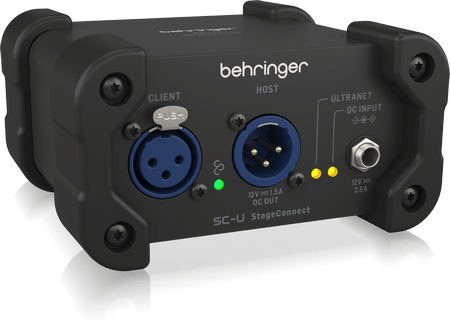

Modern stages run on multiple protocols. The Behringer SC-U bridges three of the most important — StageConnect, multi-channel USB audio, and Ultranet personal-monitoring — all in a sturdy enclosure the size of a DI box. One small unit. Three interoperable worlds.

Why SC-U?

• 3-way bridge between StageConnect systems, multi-channel USB audio and Ultranet systems such as Behringer P16 personal monitors
• Compact and sturdy enclosure the size of a DI box for stage-floor placement
• Asynchronous 32-channel sample-rate conversion bridges different word clocks (0.4 ms latency, 140 dB dynamic range)
• StageConnect 32-channel bidirectional audio with sub-millisecond latency at 44.1 / 48 kHz, 24-bit, over standard 3-pin XLR DMX or mic cable
• MIDI data transmission from USB host computer to StageConnect bus
• Host connector for multi-channel audio connections with other StageConnect devices
• Client connector for daisy-chaining multiple devices
• External DC power supply included

Tour engineers, install integrators, hybrid analogue/digital stage builders — SC-U is the silent translator that just makes everything work together. One small box. Three open worlds.
