WING Power, Small Footprint
48-Channel, 28-Bus Full Stereo Digital Mixing Console, with 24-Midas PRO Preamps, 8 Midas PRO Outputs, 10.1" Touch Screen and 13-Fader Control Surface
Highlights

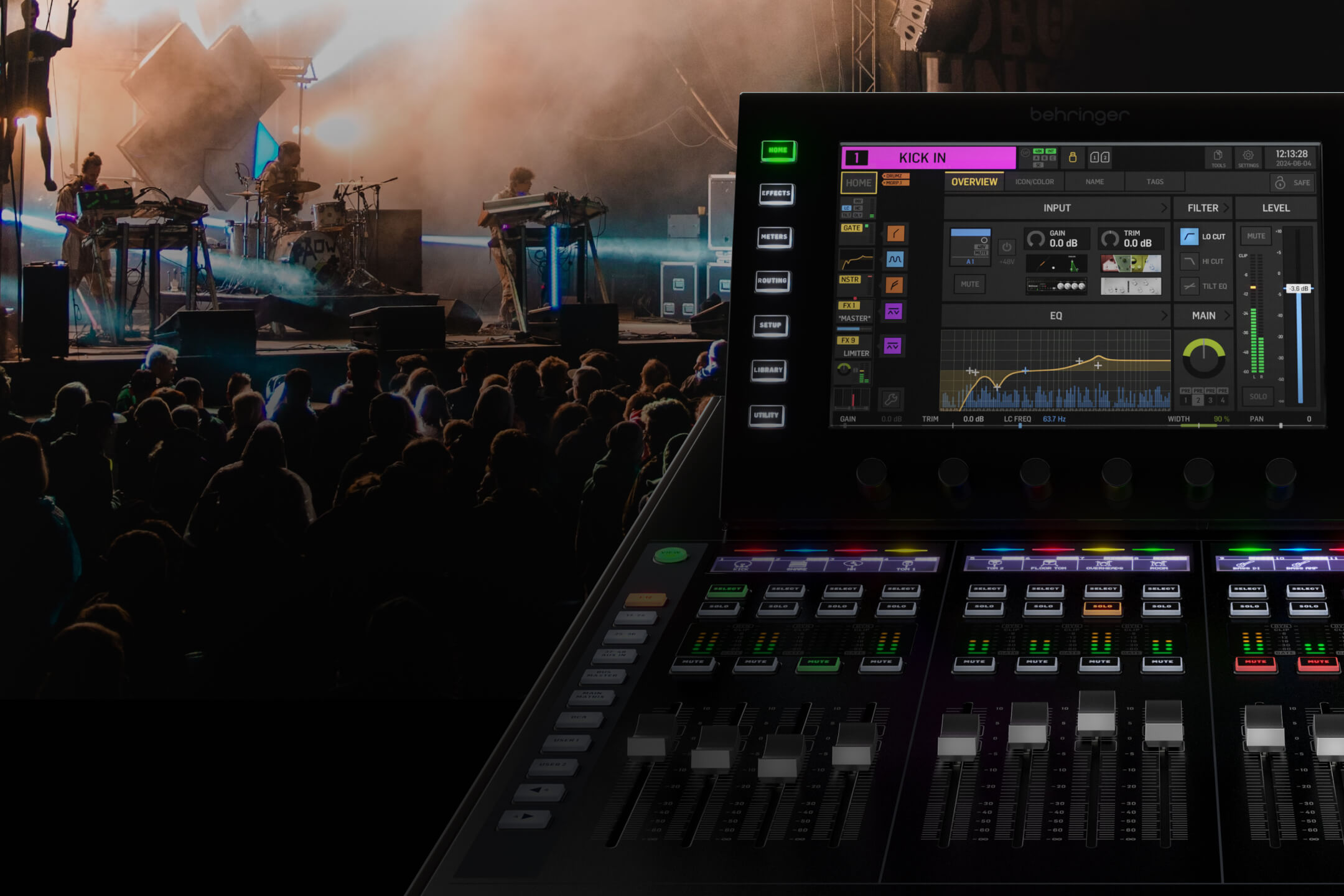

Experience 48 Amazing FlexChannels
Stereo or Mono — You Decide
Set all channel and buses to mono, stereo or even M/S while maintaining the full channel count (FX slots included) at no performance cost at all.
Superior Sound, Seamless Setup
Give musicians an immersive experience of full stereo in-ear monitoring with WING's 28 stereo busses. You can also add stereo insert effects to any channel with just a single click!
Limitless Potential
WING's flexible channel configuration adapts to your needs, offering up to 48 channels in any Mono, Stereo or M/S format.

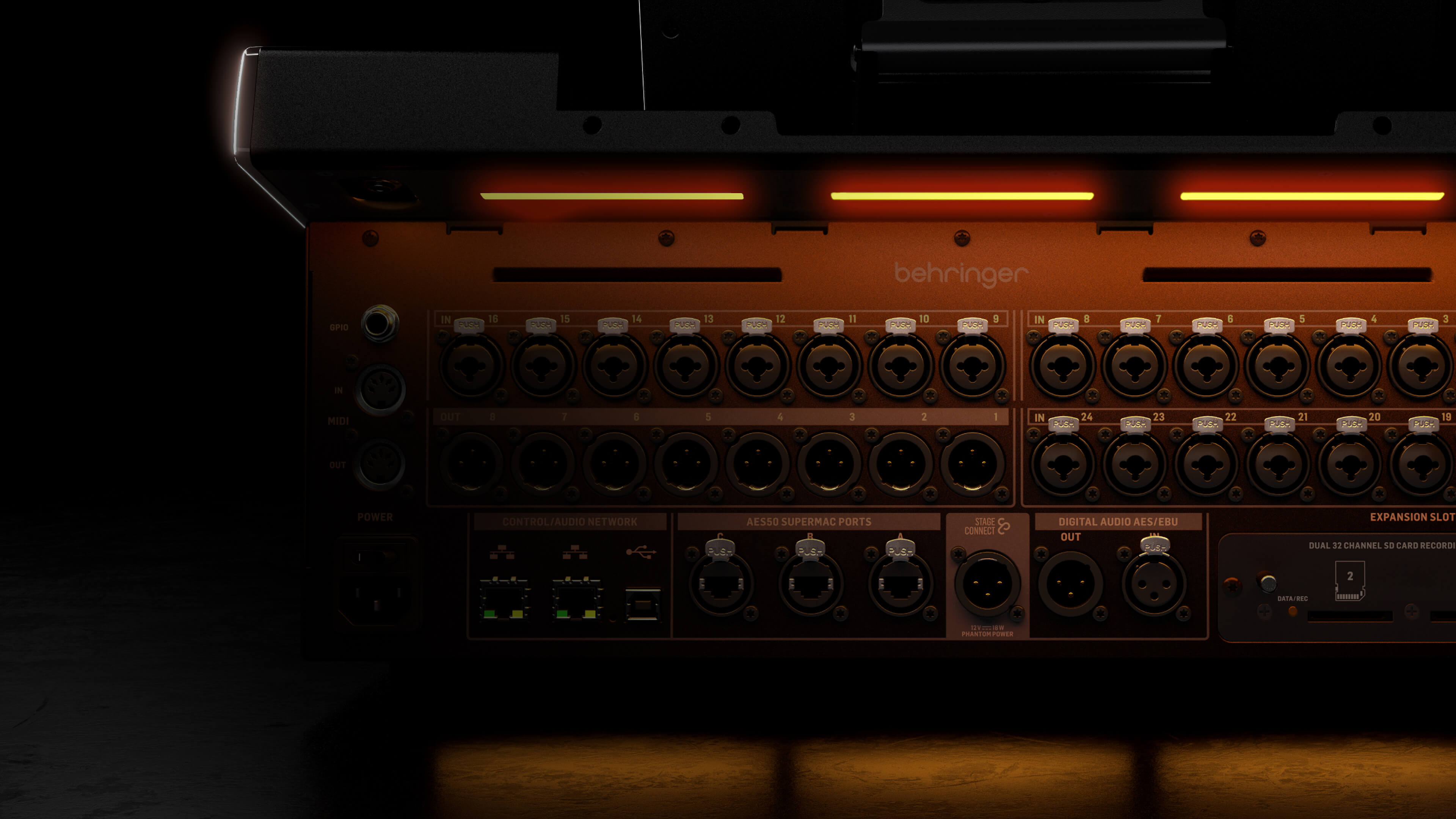

Insane I/O
Literally Hundreds of Ins and Outs — 382 inputs and 368 outputs on WING COMPACT give you the freedom to adapt to any scenario:
- Switch between artists on the fly
- Manage multiple play out destinations with streaming or video
- Navigate complex live events with distributed or networked I/O
- Use the built-in 64-track recorder for virtual sound checks or live playback
- Connect to the 48-track USB audio interface for perfect integration with your DAW
Experience Total Recall
Save and recall precise FX parameters, specific channel settings, console settings, or entire shows. Whether you're working on a complex live performance or a musical theater project, WING offers an extremely comprehensive toolkit for recalling and triggering all elements of your show instantaneously, with the granularity you need.

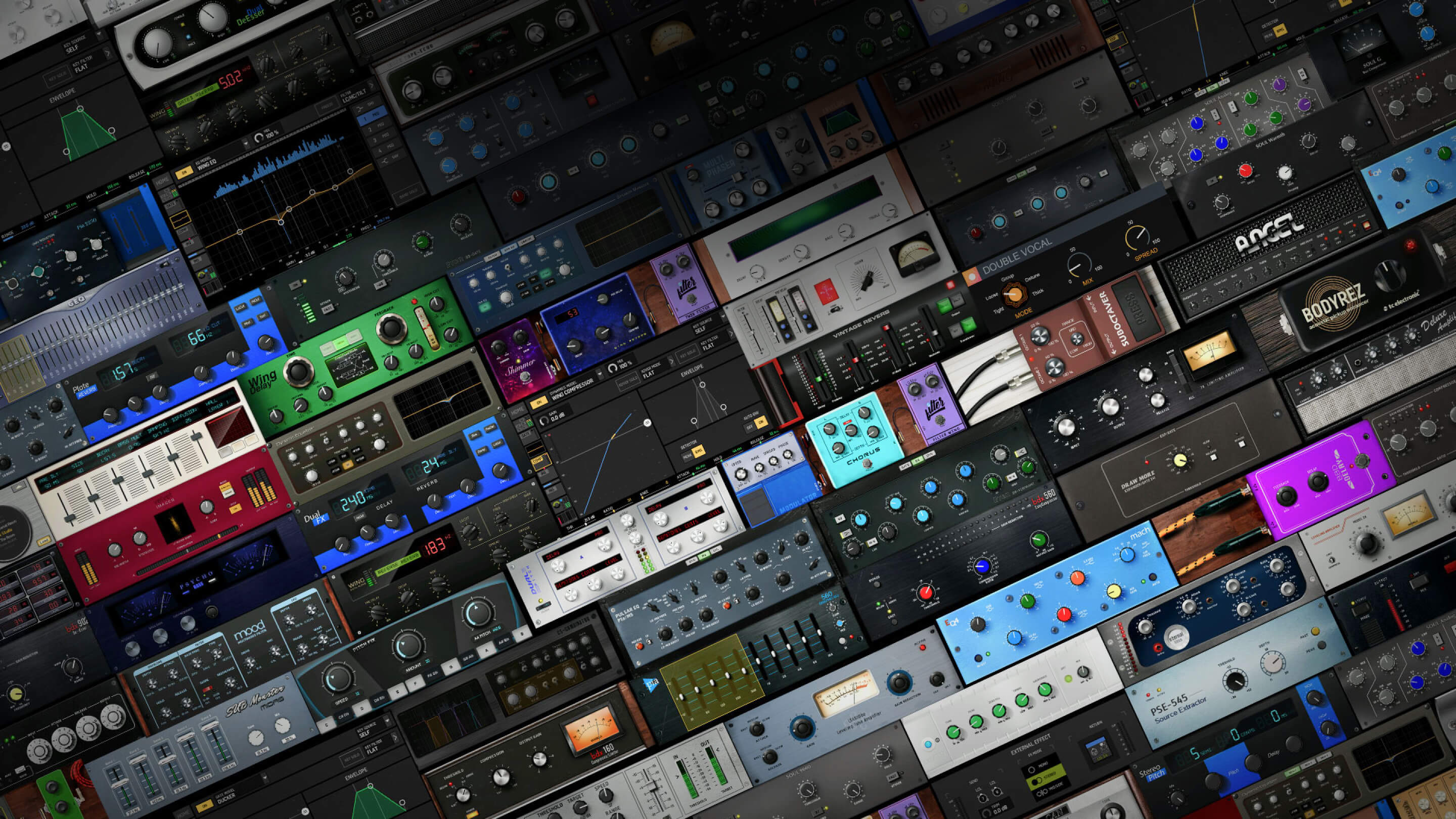

Enjoy World-Class Effects
WING is equipped with over 80 unique effects and emulations inspired by renowned hardware like the Pultec EQ, SSL Bus Compressor, Gate/Expander, SPL Transient Designer, Neve EQ, Compressor, Gate, Focusrite ISA and D3, DBX160, LA-2A, 1176, Elysia mPressor, and Empirical Labs Distressor*. No external gear is required.
WING boasts double the effect engines and insert points compared to the X32 and utilizes 40-bit internal processing algorithms, providing greater accuracy and an expanded dynamic range.

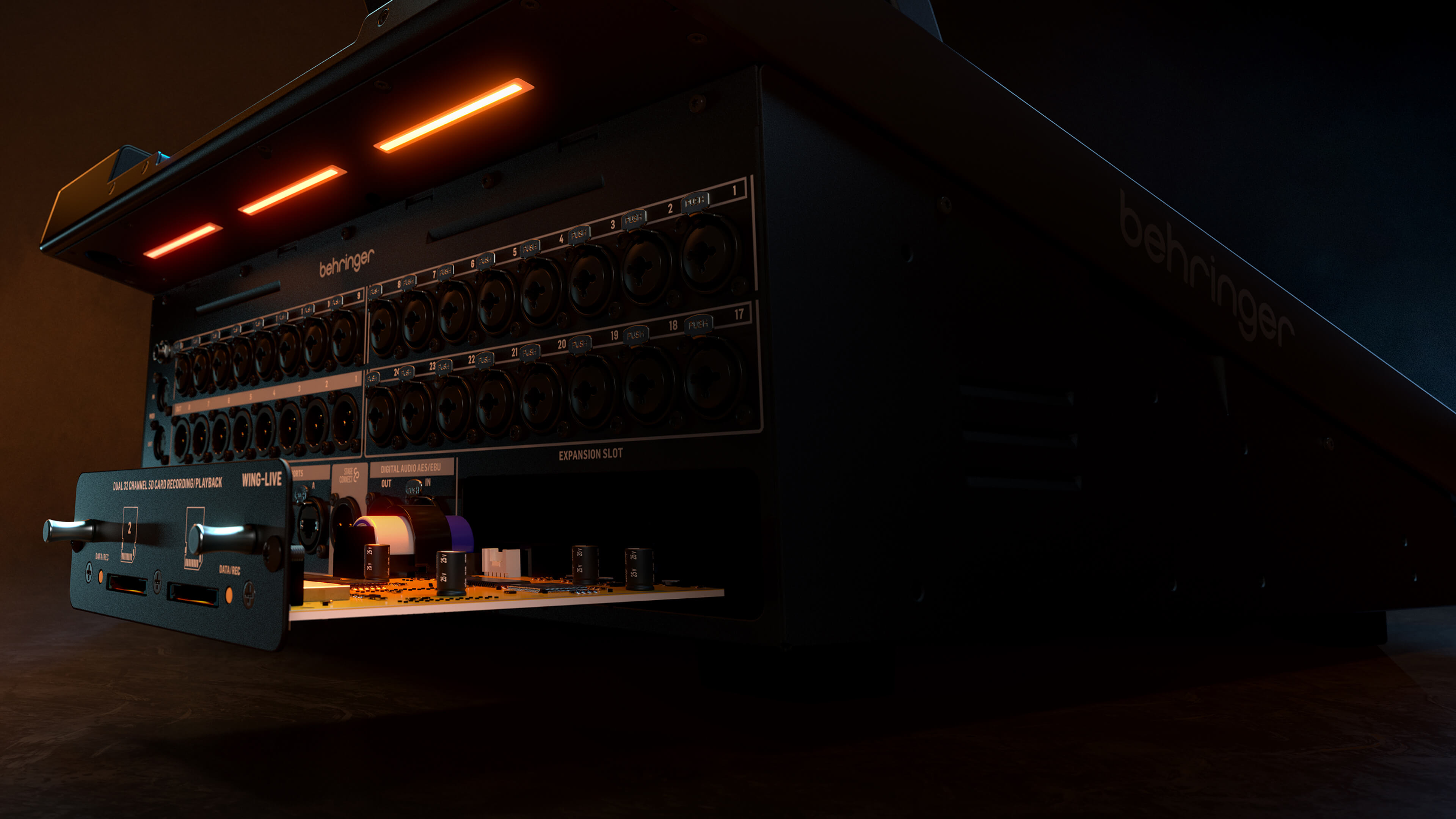

Configure WING to Suit You
Record Up to 64 Channels
The WING LIVE card comes pre-installed and allows you to record up to 64 channels simultaneously to 2 linked SD cards, or take a pre-recorded session and do a virtual soundcheck in the venue. You can also use one 32-track SD recorder for playback and the second one for recording the performance.
Swap Out External Cards with Ease
You can easily change the WING LIVE card for a WING DANTE card, enabling full 64x64 channel Dante networking connectivity. We are also planning other expansion cards for MADI and Waves Soundgrid, for example.
Plus Another 64x64 Channels via Internal AoIP Modules
The internal AoIP (Audio over IP) modules can fit directly into the mainboard of your WING console and enable the two internal network ports for Ethernet-based audio transmission. Our retailers can also help you upgrade your existing WING or order a new WING console with your preferred card pre-installed. We currently have AoIP-Dante and AoIP-WSG (Waves Soundgrid) modules available.

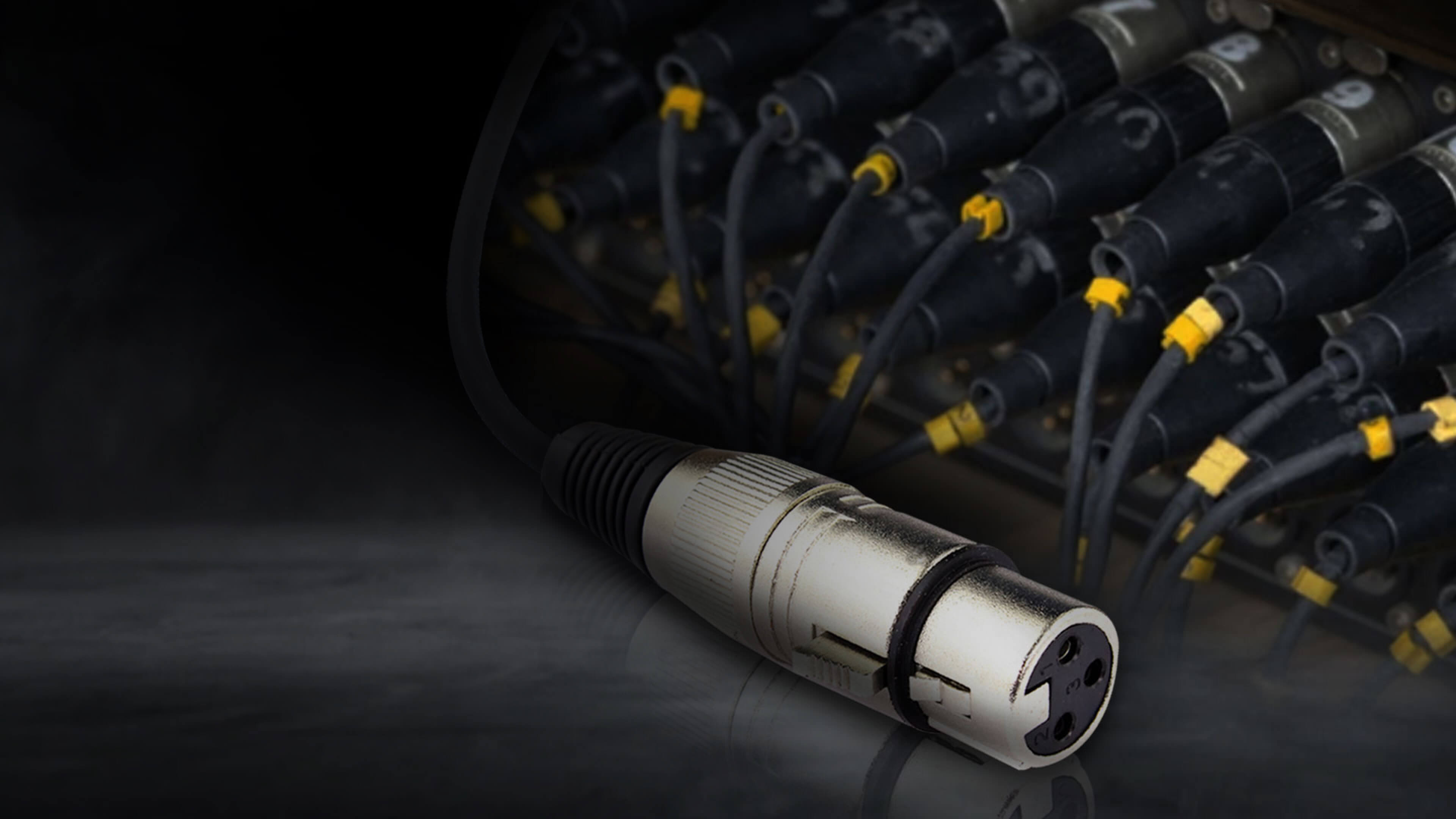

StageConnect — Connect More with Less
Transfer 32 channels of 44.1kHz/48kHz and 24-bit audio to and from I/O interfaces, hubs, personal monitoring mixers, and more using just one XLR/DMX cable.
Use a standard XLR mic cable for short connection, like connecting your side rack or internal rack connections.
Using a regular 3-pin XLR DMX cable allows for long cable runs of over 30 m (100 feet).

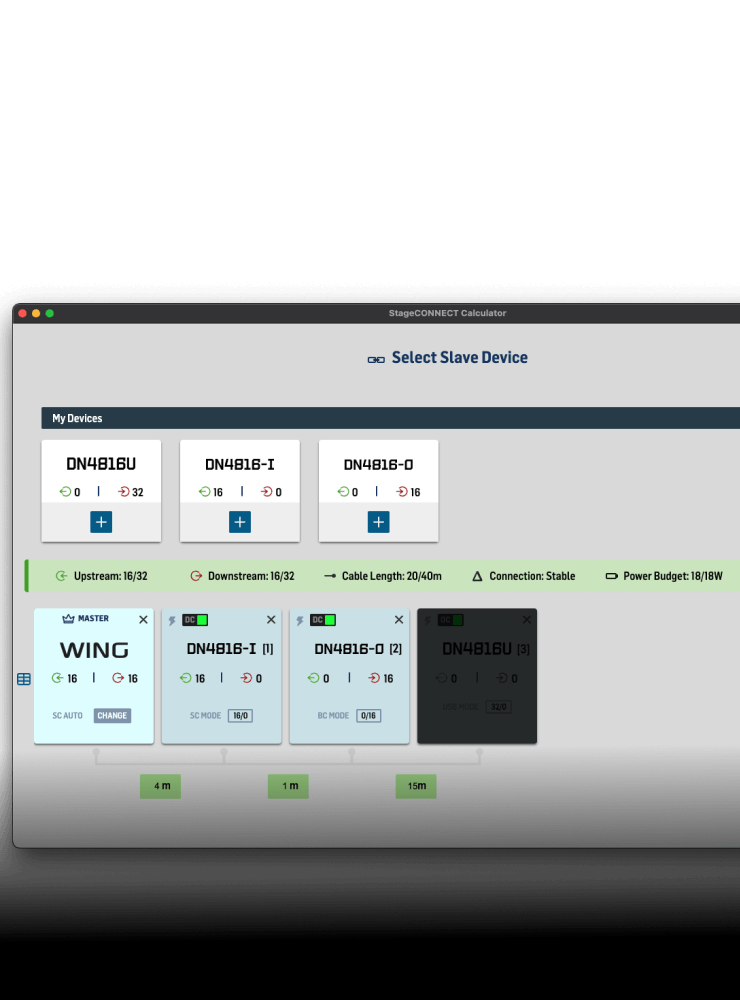

The StageConnect Configurator app helps to calculate channel count, power requirements, and cable lengths for StageConnect setups. Available for Mac, PC and Linux.
Free WING Remote Apps

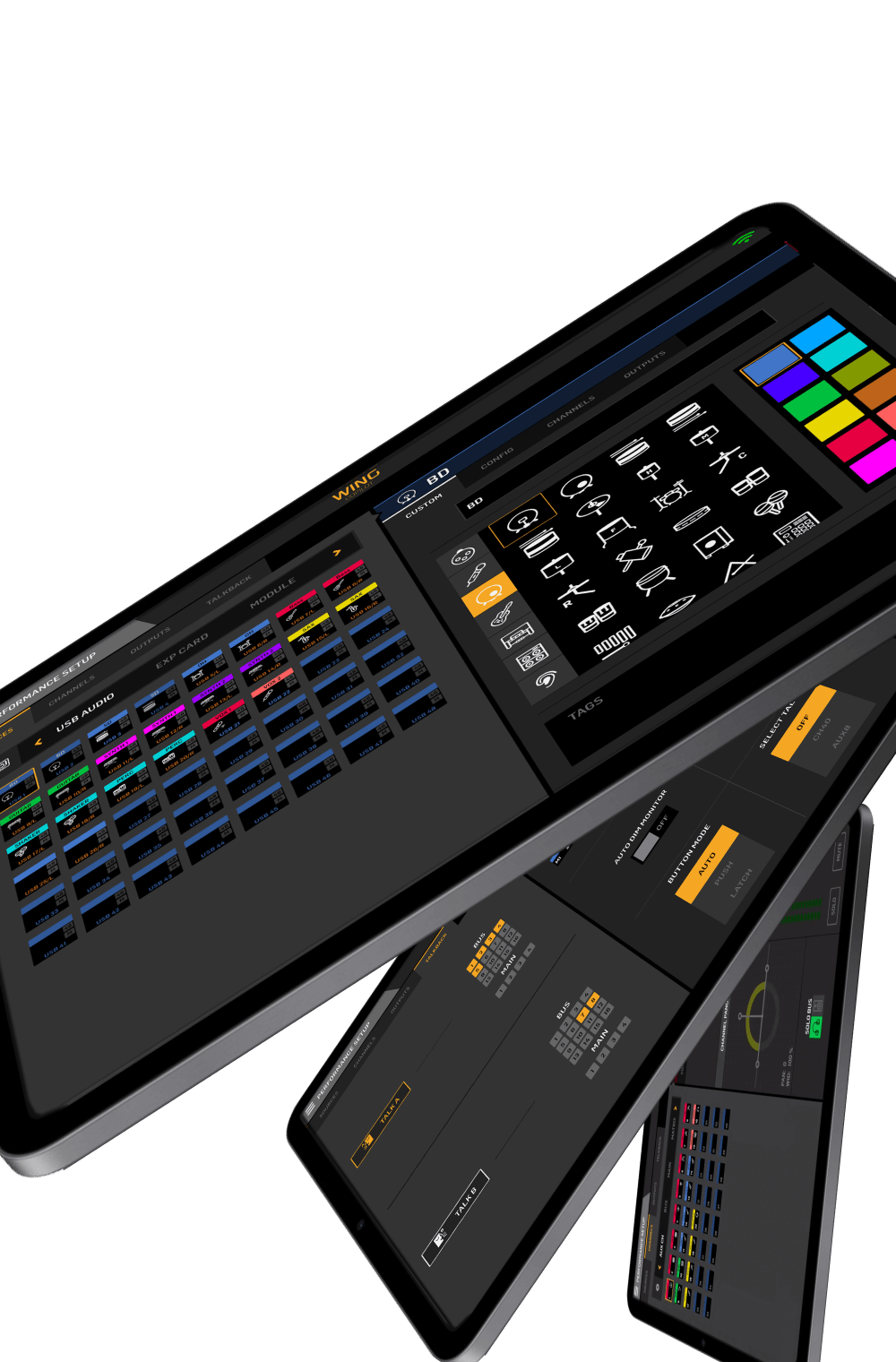

CoPilot
Remote mixing for tablets

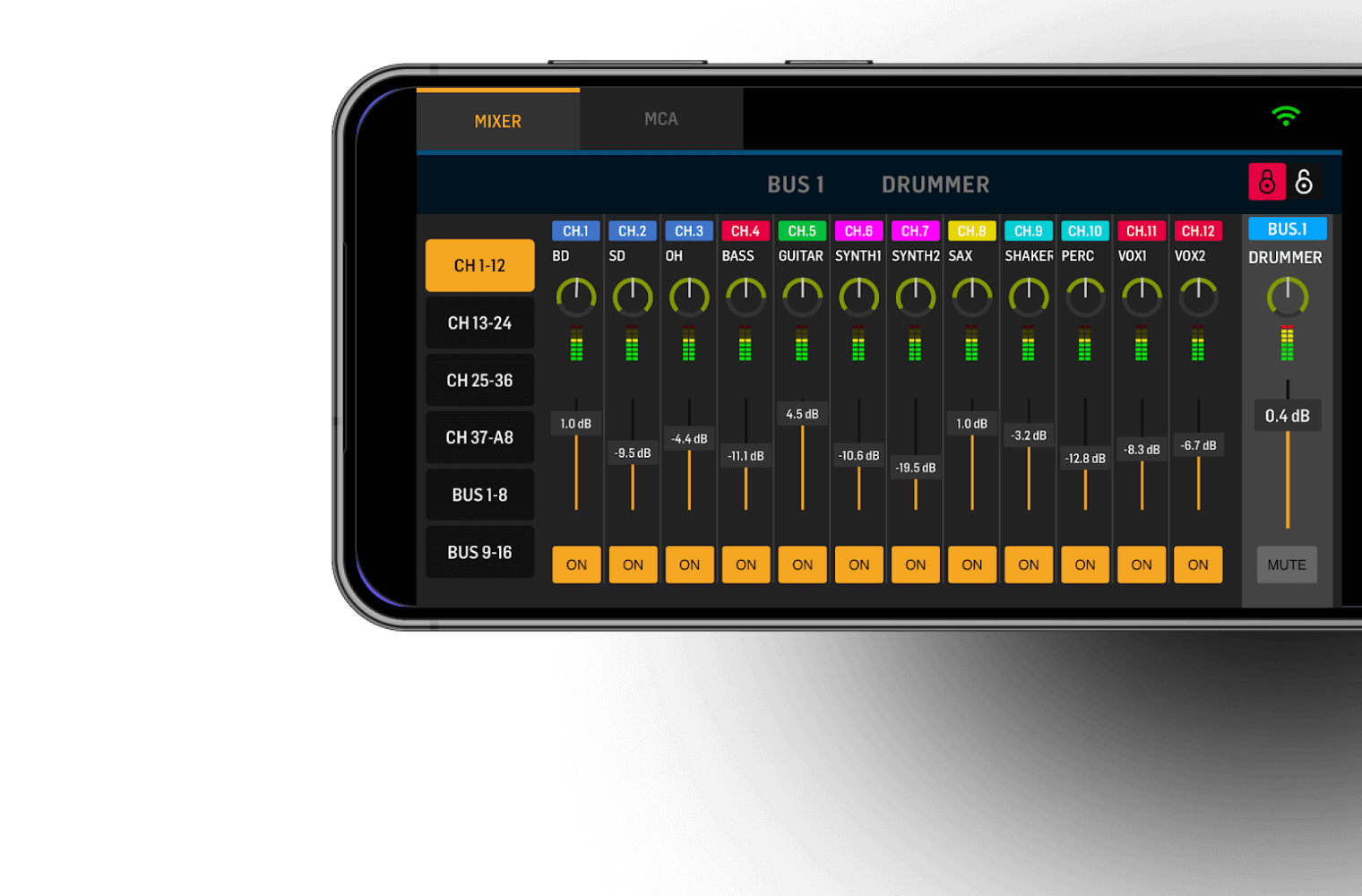

WING Q
Monitor mixing tailored for musicians

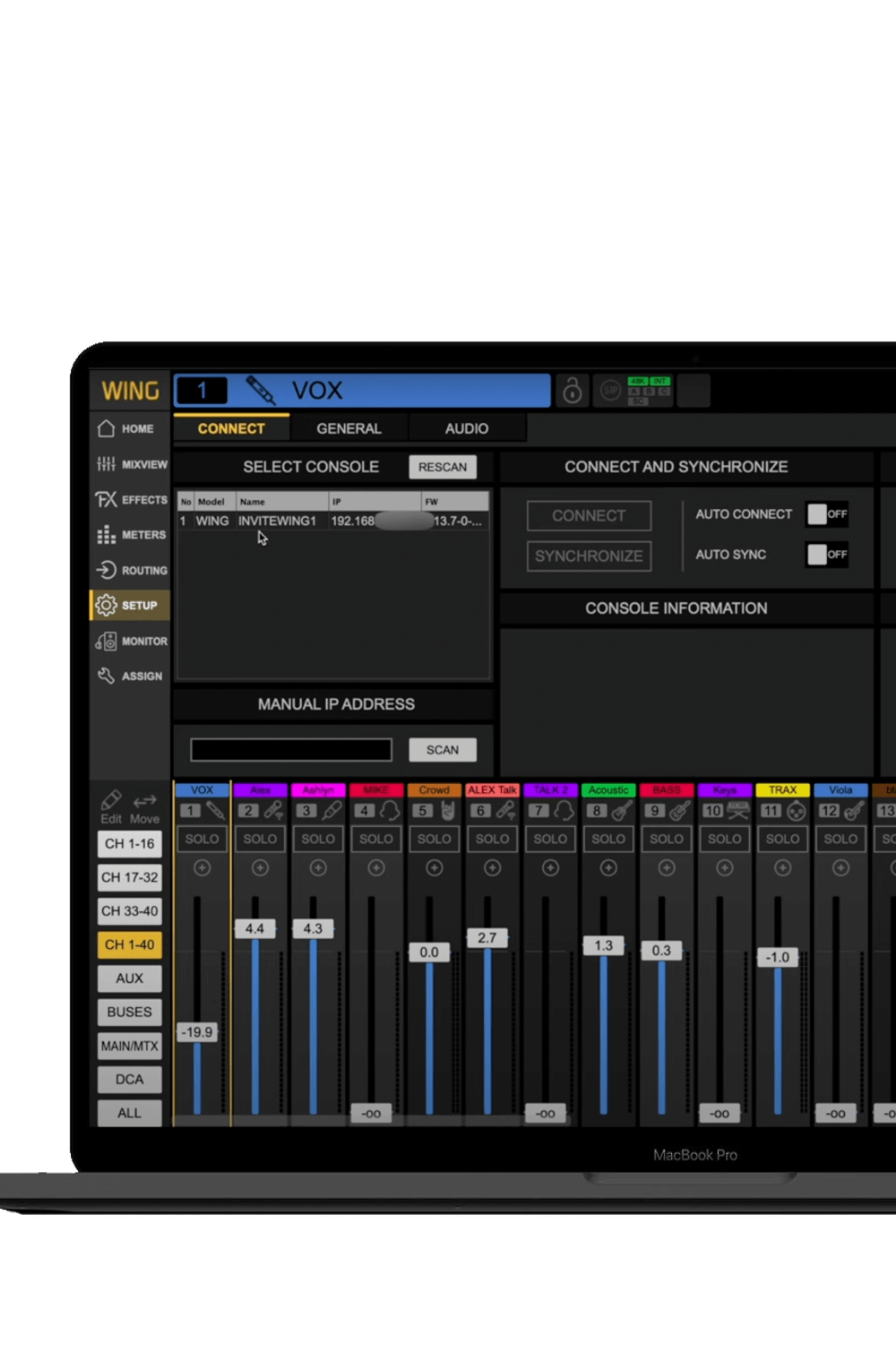

WING EDIT
Remote and offline mixing control

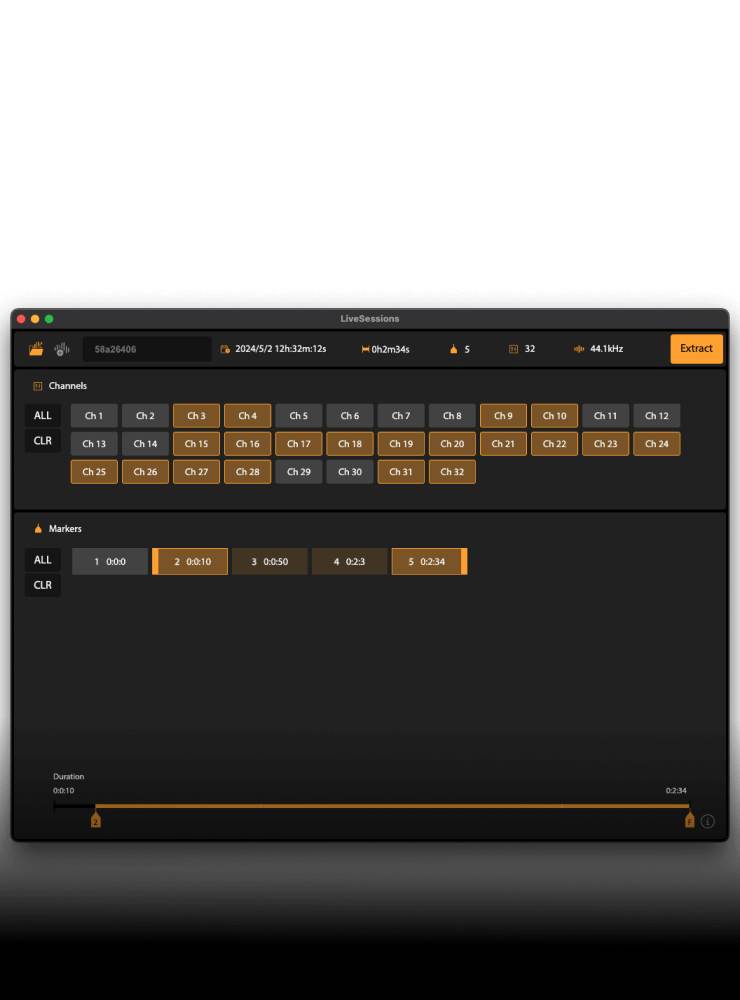

LiveSessions
Convert multi-track recordings or prepare playback sessions
StageConnect Configurator
Calculate routing, cable lengths and power needs

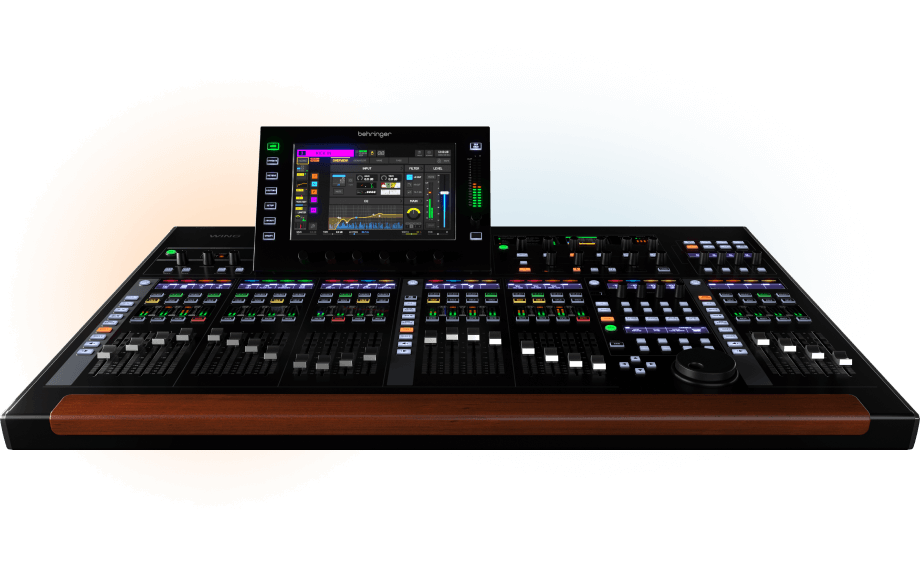

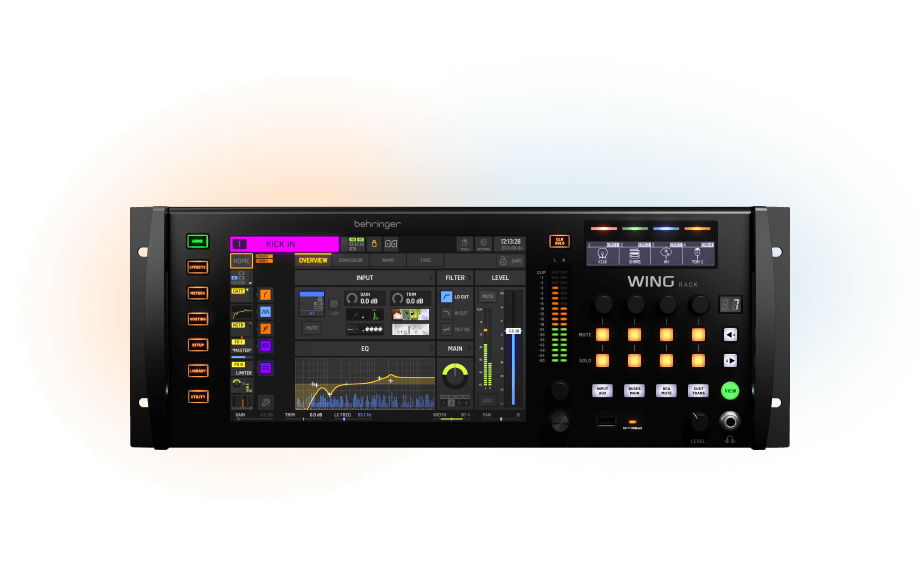

Visit WING, WING COMPACT, and WING RACK for information and downloads.
Related Products

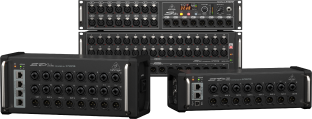

Behringer Digital Stage Boxes
Expand your I/O

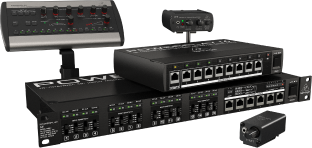

Behringer Personal Monitoring
Experience truly personalized listening
Expansion Cards
Connect to SoundGrid, Dante and more
Midas Digital Stage Boxes
Reach ultimate heights in sound quality
Klark Teknik
Link StageConnect to USB
StageConnect Eco-System
Connect everything with StageConnect

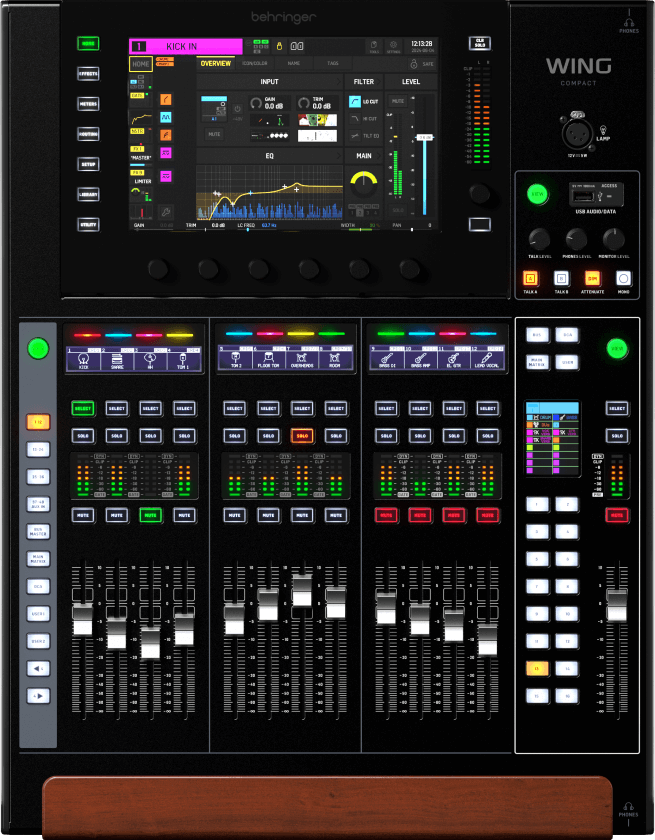

WING COMPACT
48-Channel, 28-Bus Full Stereo Digital Mixing Console, with 24-Midas PRO Preamps, 8 Midas PRO Outputs, 10.1" Touch Screen and 13-Fader Control Surface
- 24 Midas PRO mic preamps and 8 outputs provide industry-reference sound quality
- 13 motorized 100 mm faders with powerful master fader section - and 20 Custom buttons
- 3 AES50 ports for a total of 144 input and output signals on SuperMac CAT5 connections with ultra-low jitter and 6-sample latency
- 10.1 inch main display with multi-touch screen and adjustable swivel
- Unique "Sends on Fader"-Workflow with dedicated color TFT-Display and dedicated hot-keys to 44 Masters - Buses, Mains, Matrices, DCA's
- Integrated USB Audio/MIDI Interface for 48 audio channels in and out
- Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
- Internal AoIP-module can upgrade the Ethernet ports with optional 64 channel audio in and out to Audinate Dante and Waves SoundGrid networks
- 16 True-stereo effects processing engines with 80+ world-class algorithms
- 3 plug-in slots for Gate, Dynamics and EQ included in every channel. All without reducing any additional effect processing headroom
- 4 main, 8 matrix and 16 aux stereo buses featuring dual inserts, 8-band parametric EQ's, stereo imager and full dynamics processing, all in a single effect chain
- 40 Stereo Input Channels with 5 variable plug-in processing slots each
- 8 Stereo Aux Input Channels with single FX insert slot, expander/limiter and 4-band parametric EQ
- 8 Mute Groups and 8 DCA's for track grouping and consolidation
- 2 Ethernet ports with integrated switch for networked remote control and optional AoIP through Waves SoundGrid and Dante®
- Rear panel expansion slot can host optional 64-channel audio interface and networking expansion cards, e.g. Dante, WSG, MADI …
- StageConnect Host interface for sharing of up to 32 channels in either direction via single XLR connection
- 2 channel GPIO for controlling almost anything with WING
- 5-Pin MIDI in and out for control and synchronization with external devices
- DAW Remote Control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
- Offline editing and remote control via WING-CoPilot, WING-Q and WING-Edit Softwares for Desktop and Mobile
- 19" rack-mountable in 3 positions
Specification
Input/Output Characteristics
| Frequency response @ 48 kHz sample rate, 0 to -1 dB (any gain setting) | 10 Hz - 20 kHz |
| Dynamic range, analog in to analog out (typical), XLR / aux | 111 dB / 108 dB |
| A/D dynamic range, preamplifier and converter (typical), XLR / aux | 112 dB / 110 dB |
| D/A dynamic range, converter and output (typical), XLR / aux | 118 dB / 112 dB |
| Crosstalk rejection @ 1 kHz, adjacent channels | 100 dB |
| Output level, XLR connectors (nominal / maximum) | +4 dBu / +21 dBu |
| Output impedance, XLR connectors (unbalanced / balanced) | 75 Ω / 75 Ω |
| Input impedance, TRS connectors (unbalanced / balanced) | 20 kΩ / 40 kΩ |
| Non-clip maximum input level, TRS connectors | +16 dBu |
| Aux output level, TRS (nominal / maximum) | +4 dBu / +16 dBu |
| Aux output impedance, TRS (unbalanced / balanced) | 150 Ω / 300 Ω |
| Phones output impedance / maximum output level | 1W Max @ 30 Ohm |
| Residual noise level, XLR out 1-16 connectors, unity gain | -97 dBu |
| Residual noise level, aux and monitor TRS out connectors | -95 dBu |
Displays
| Main screen | 10.1" TFT LCD, 1280 x 800 px, capacitive touch |
| Main screen swivel, continuous adjustment | 15°- 60° |
| 4-channel group LCD screen with RGB color strip per channel | 320 x 48 monochrome |
Controls
| 100 mm motor faders | 12 + 1 |
| Touch-sensitive rotary controls | 3 + 7 + 11 + 4 + 4 |
| Custom controls | 8 |
| Fully assignable rotary controls | 4 |
| Fully assignable backlit buttons | 8 + 8 |
| Variable rotary controls / buttons | 4 / 4 |
Power
| Switch-mode power supply | Auto-ranging 100-240 VAC (50/60 Hz) |
| Power consumption | 130 W |
Physical
| Standard operating temperature range | 5°C – 40°C (41°F – 104°F) |
| Dimensions (HxWxD) | 57.43 x 45.337 x 22.5 cm |
| Weight | 15.92 kg |
